DevOps

AWS Angular Stack Automation

, , ,

Effort is not work. Carrying a piano up the stairs is the same amount of work as using an elevator, but tremendously more effort.

Your focus should be on delivering quality code, not the intricacies of deployments. It should be as easy as:

  1. Deploy Infrastructure
  2. Deploy Code
  3. Repeat as necessary

Until recently I worked in a SOX-compliant on-premise IIS shop. SOX regulations are there for good reason but they are a huge burden if every deploy and config change is done and documented manually. Our deployments were usually an all-hands-on-deck affair, and scheduling an automated deployment seemed like a pipe dream. It once took infrastructure months to enable SSL on our site! Having moved to a cloud-first shop it all just seems like so much unnecessary effort.

Prerequisites

Deploy Infrastructure

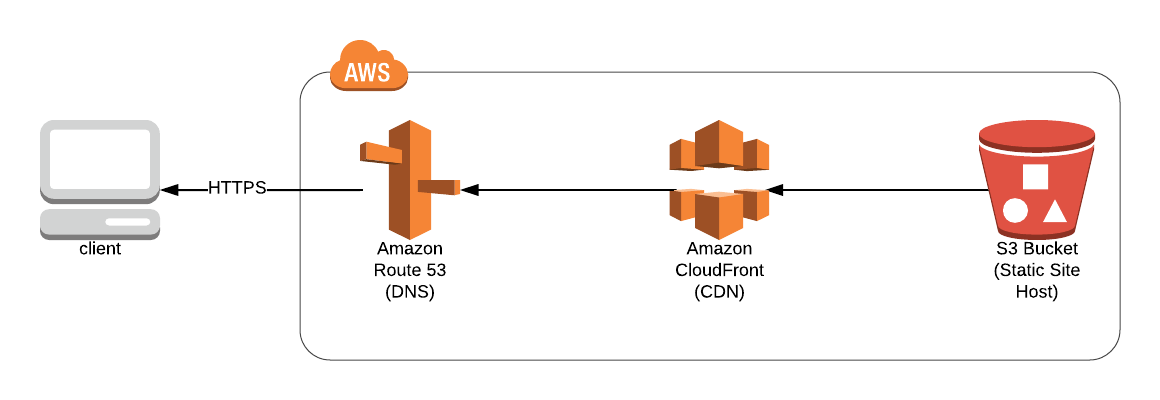

Simple Demo Environment

In AWS infrastructure-as-code is done with CloudFormation templates. We will deploy the following resources with our template.

  • S3 Bucket - for hosting our Angular App
  • CloudFront Distribution - CDN for our Angular App. Also handles error redirects for SPA routes and SSL
  • Route53 DNS Entries - Everybody loves pretty domain names

The annotated stack template can be found here:
https://github.com/ibliskavka/aws-angular-stack-starter/blob/master/stack/template.yml

Once you download the template you can install it with the following CLI command:

1
2
3
4
aws cloudformation deploy \
    --template-file template.yml \
    --stack-name aws-ng-demo \
    --parameter-overrides BaseUrl=*** AppUrl=*** AcmCertArn=***

Note: Replace the asterisks with your own values

It took almost 25 minutes to build my stack. Stack completion time varies but in general CloudFront distributions take ~20 minutes to create. All the more reason to script your deploys. You can check the detailed status (or errors) in the AWS web console.

Upon completion, you will receive a message like:

1
2
3
Waiting for changeset to be created...
Waiting for stack create/update to complete
Successfully created/updated stack - aws-ng-demo

Open up the web console to see your stack outputs or run the following command:

1
2
3
aws cloudformation describe-stacks \
    --stack-name aws-ng-demo \
    --query "Stacks[0].Outputs[?OutputKey==`DistributionId` || OutputKey==`AppBucket`]"

Deploy Code

I recommend pulling a sample angular app for this tutorial. I included one in the tutorial repository.

Add a script in package.json that looks like this:

1
2
3
"deploy": "ng build --prod --aot
    && aws s3 sync dist/demo-app s3://{AppBucket}
    && aws cloudfront create-invalidation --distribution-id {DistributionId} --paths /"

Note: Replace {AppBucket} & {DistributionId} with your stack outputs.

What this does

  1. Builds the angular app for production
  2. Syncs the built app to your S3 bucket
  3. Creates a CloudFront invalidation so that edge locations would get the latest build. (optional)

Deploy your code with the following command
npm run deploy

That’s it! Now your app is deployed to AWS!

Screenshot of demo-app using SSL on a Route53 domain

Cleanup

Cleaning everything up is even easier than putting it up. There is no reason to pay for environments that are not in use!

The following commands will delete your bucket contents and then delete the stack.

1
2
aws s3 rm s3://{AppBucket} --recursive
aws cloudformation delete-stack --stack-name aws-ng-demo

Note: Replace {AppBucket} with your stack output

Conclusion

This may seem like if overkill you only have one toy app. If you are producing a bunch of apps and have multiple environments this becomes an amazing time saver.

If the policy states that you can’t deploy your own code, your ops guys will love this! Additionally, any infrastructure changes are explicitly documented in your source control.
